13. Other Topics

13.1. License Retrieval

THOR offers more flexible ways to retrieve licenses in addition to the classic approach of placing a license file in the program folder. This chapter describes both available license retrieval options.

These two options also work with THOR Remote. In that case, all licenses are downloaded to the host that runs the initial THOR Remote command. The system running THOR Remote itself does not need a license.

Important

If a valid THOR license for the host is already present in THOR's program folder, no new license will be downloaded or issued from the remote source.

13.1.1. ASGARD License Retrieval

If you have a local ASGARD Management Center instance and use its license pool for THOR scans, you can use the --asgard flag to download a valid license. This also requires the --asgard-token flag. The token can be found in the Download section of your ASGARD Management Center.

Example:

nextron@unix:~/thor$ ./thor-linux-64 --asgard "my-asgard.local" --asgard-token "download-token"
[...SNIP...]
Info License file found LICENSE: my-asgard.local OWNER: John Doe TYPE: Server STARTS: 2023/08/30 EXPIRES: 2023/11/01 SCANNER: THOR VALID: true REASON:

The retrieved license is placed in THOR's program folder so that you can run THOR next time without the extra flags. The file name is <hostname>.lic. Rerunning the command does not issue a new license; it downloads the already valid license again from your ASGARD Management Center.

13.1.2. Nextron Portal License Retrieval

If you use standalone THOR packages, you can speed up deployment by using the --portal-key flag. This allows you to download a THOR license directly from the Licensing Portal without having to generate and download licenses manually first. This is a practical way to automate scanning.

The --portal-key argument accepts one of the following values:

The API key of your portal user
A download token for one of your contracts

When using an API key, THOR retrieves the first available license from the contract with the lowest ID and issues it to your host. No new license is issued if a valid license is already available for the host. If no valid license is found, a new one is issued. If you want to limit license issuance or downloads to specific contracts, provide the --portal-contracts flag.

Example:

nextron@unix:~/thor$ ./thor-linux-64 --portal-key "my-api-key" --portal-contracts "3,5,12,13"
...SNIP...
Info License file found LICENSE: portal.nextron-systems.com OWNER: Jane Doe TYPE: Server STARTS: 2023/03/10 EXPIRES: 2023/09/29 SCANNER: THOR VALID: true REASON:

The retrieved license is placed in THOR's program folder so that you can run THOR next time without the extra flags. The file name is <hostname>.lic. Rerunning the command does not issue a new license; it downloads the already valid license again from the portal.

Attention

If no valid license is found, a new one will be issued. This can be prevented with the --portal-nonewlic flag. If THOR can't find a valid license within the account/contracts, it will simply exit. This is a useful feature if you want to prevent over-issuing of licenses within your contracts.

13.2. Evidence Collection

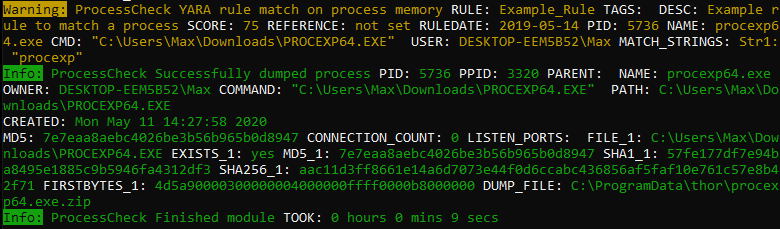

13.2.1. Process Memory Dumps (--dump-procs)

Since THOR version 10.5 it supports process dumping to backup volatile malware information.

THOR on Windows creates a process dump of any process that is considered malicious. Maliciousness is determined as anything that triggers a warning or an alert.

Activate process memory dumping with --dump-procs.

This process dump can then be analyzed with standard tools later on to examine the found malware.

To prevent flooding the disk fully in case many dumps are created, old dumps of a process are overwritten if a new dump is generated. Also, THOR will not generate dumps by default if less than 5 GB disk space is available. This can be overwritten to always or never dump malicious processes.

Also note that THOR will never dump lsass.exe to prevent these dumps from potentially being used to extract passwords by any attackers.

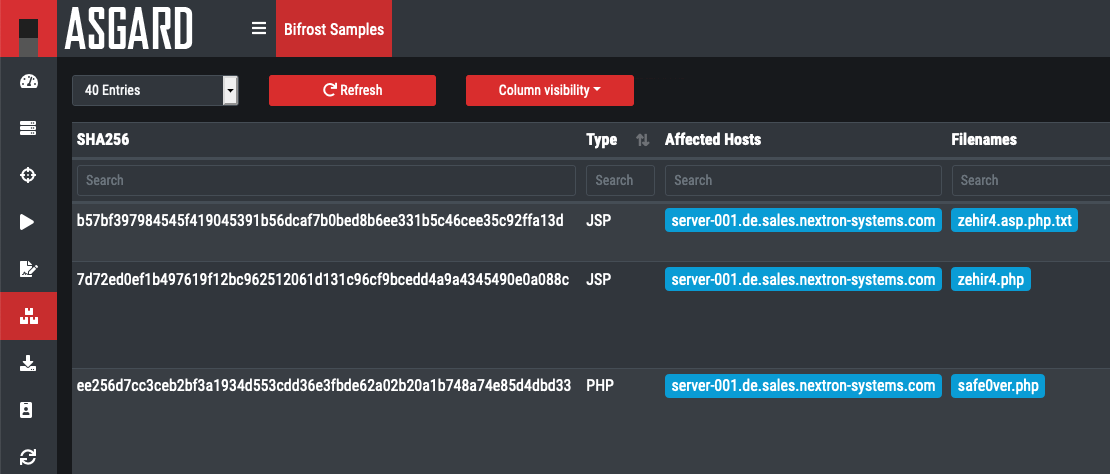

13.2.2. File Collection (Bifrost v2)

Bifrost v2 cannot be used standalone yet. The required API Key is set by ASGARD v2 during initialization and is unknown to a THOR user.

You can activate the quarantine function via Bifrost v2 when creating a single or group scan via the ASGARD management interface.

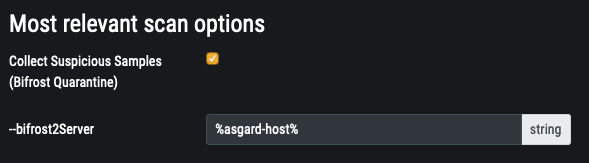

Configure Quarantine via Bifrost in New Scan Dialogue

13.3. Resource Control

THOR's internal resource control feature puts the system's stability and the responsiveness of running services first.

Resource control is active by default. You can deactivate it using --norescontrol.

Be advised that due to Resource Control, the THOR scan may terminate before completion. The scan gets terminated under the following conditions:

If the available physical memory drops below 50 MB
If more than 60 MB of log data have been written (disk / syslog)

In this case, THOR switches in the "reduced-logging" mode in which it only transmits "Notices, Warnings and Alerts" and after another 4 MB of log data THOR terminates itself in order to prevent log flooding due to a high number of false positives

If the scan constantly terminates you should check what causes the performance issues or choose times with less workload (e.g. weekends, night). To debug such states, you can check the last warning that THOR generates before exiting the scan. It includes the top memory consumers that could have caused the memory exhaustion.

Warning

Deactivating Resource Control on systems with exhausted resources can put the system's stability at risk.

13.3.1. Automatic Soft Mode

Soft mode is automatically activated on systems with low hardware resources.

One of the following conditions activates soft mode:

Less than 2 CPU cores
Less than 1024 MB of RAM

In Soft mode several checks and features that could risk system's stability or could provoke an Antivirus or HIDS to intervene with the scanner are disabled. See Scan Modes for a complete overview.

13.4. Scoring System

The scoring system is one of THOR's most prominent features. Both YARA signatures and filename IOCs contain a score field. The score is an integer value that can be negative to reduce the score on elements that are prone to false positives.

Only YARA rules and Filename IOCs support a user defined score. But since you are able to write YARA rules for almost every module, the scoring system is very flexible.

The total score of an element determines the level/severity of the resulting log message.

Score	Level	Condition
>= 40	Notice
>= 60	Warning
> 80	Alert	At least 1 sub score more than 75

Note

As of THOR version 10.7, we reworked the scoring system to only use scores between 0 and 100. The score is a metric that expresses a combination of confidence and severity in percent. This means a finding with a score of 95 can be seen as a severe finding with a high confidence. Exceptions might be - as always - obvious false positives like unencrypted or in-memory AV signatures.

13.4.1. Scoring per Signature Type Match

Type	Score
YARA match	Defined in the meta data of the YARA rule as integer value (e.g. "score = 50")
Filename IOC match	Defined in the 2^nd field of the CSV (e.g. `\\evil.exe;80`)
Keyword IOC match	"warning" level messages, see Default Scores
C2 IOC match	"warning" and "alert" level massages, see Default Scores

13.4.2. Accumulated Scores

If an element has multiple sub-scores, all sub-scores will be accumulated and calculated into one final score. Below you can see how those scores are calculated.

Most modules and features summarize via reasons. Please keep in mind that only positive scores and the top two reasons are shown by default. You can use --max-reasons to change how many reasons you want to show (example: --max-reasons 5 to show 5 reasons).

Reason scores are not added up for the total score. Instead, given a number of scores (s_0, s_1, ...) that are ordered descending. The total score is calculated with the following formula:

100 * (1 - (1 - s_0 / 100 / 2^0) * (1 - s_1 / 100 / 2^1)  * (1 - s_2 / 100 / 2^2) * ...)

This means, scores are "capped" at a maximum of 100, and multiple lower scores are weighted far less.

You can use python to calculate the score and try the formula. Please note that we use an example with five sub-scores and no sub-score higher than the threshold of 75 to turn classify this as an alert:

subscore0 = 1 - 70 / 100 / pow(2, 0)
subscore1 = 1 - 70 / 100 / pow(2, 1)
subscore2 = 1 - 50 / 100 / pow(2, 2)
subscore3 = 1 - 40 / 100 / pow(2, 3)
subscore4 = 1 - 40 / 100 / pow(2, 4)
score = 100 * (1 - (subscore0 * subscore1 * subscore2 * subscore3 * subscore4))
print(score)
84.195859375

13.4.3. Default Scores

If no score is set in an "alert" or "warning" message, THOR automatically appends a score that corresponds to the message level:

Level	Score
Warning	60
Alert	80

13.4.4. Exception: High total score with low sub scores

"Alerts" on file system elements are only generated if one of the sub scores is more than 75.

Before that change, multiple low scoring reasons had led to a score higher 100 and caused an "Alert" level message although not a single hard match was included in the "Reasons". A wrong extension, e.g. .txt for an executable, which is often used by employees to hand executables through tight mail filters, and a suspicious location, e.g. C:\Temp\funprog.txt caused an "Alert" level message.

Since version 8.27.2, one of the sub scores that pushes the total score over 100 has to be more than 75. (internally calculated as "alert_level - 25" because the user can adjust the alert level via the --alert parameter)

13.4.5. Exception: Filename IOC Matches

The "Filename IOC Check" is a sub check of the "String Check", which is applied to many elements, like Eventlog messages or Registry keys.

The function checkString() receives a string as input and returns possible matches.

The string is checked in multiple sub-checks against different signature lists. The most important sub-checks are checkKeyword() and checkFilename().

While the checkKeyword() sub-check returns each individual match, the checkFilename() sub check accumulates the score of all matches and returns a single total score. It is possible that many different filename signatures have matched on that string but only one match with a total score is reported. This is an exception to the usual behavior where only the "FileScan" module accumulates scores.

13.4.5.1. Filename IOC Matching in String Check Example

Imagine the following filename IOC signatures:

\\nmap.exe;70
\\bin\\nmap.exe;-30

and the following Keyword signature:

nmap.exe

The checkString() function receives the following string from the Eventlog scan module (here: a Sysmon Eventlog entry):

Process Create:
UtcTime: 20180110 10:22:25.277
ProcessGuid: {c1b49677e9615a5500000010bbc80702}
ProcessId: 3912
Image: C:\\Program Files\\Nmap\\bin\\nmap.exe
CommandLine: nmap.exe
CurrentDirectory: C:\\Windows\\system32\\
User: PROMETHEUS\\user1
LogonGuid: {c1b496771d725a5300000020d4232500}
LogonId: 0x2523d4
TerminalSessionId: 1
IntegrityLevel: High
Hashes: SHA1=F5DC12D658402900A2B01AF2F018D113619B96B8, MD5=9FEA051A9585F2A303D55745B4BF63AA
ParentProcessGuid: {c1b496771d745a530000001057452500}
ParentProcessId: 1036
ParentImage: C:\\Windows\\explorer.exe
ParentCommandLine: C:\\Windows\\Explorer.EXE

The checkString() function would create two messages: 1 "warning" for the keyword signature and 1 "notice" of the filename IOC signatures.

The keyword IOC matches in the checkKeyword() sub-check and checkString() returns a match, that generates a "Warning" level message that automatically receives a score of 75 (see Default Scores).

The filename IOCs would both match on the string in the checkFilename() sub-check and both scores would be summed up to a total score of 40 (70 + (-30) = 40), which would generate a "Notice".

13.5. Action on Match

Note

This feature requires a forensic lab license type, which is meant to be used in forensic labs.

The action command allows you define a command that runs whenever THOR encounters a file during "Filescan" that has a certain total score or higher. The default score that triggers the action command (if set) is 40.

The most popular use case for the action command is sample collection.

13.5.1. Action Flags

Parameter	Description
--action_command string	Run this command for each file that has a score greater than the score from `--action_level`
--action_args strings	Arguments to pass to the command specified via `--action_command`. The placeholders `%filename%`, `%filepath%`, `%file%`, `%ext%`, `%md5%`, `%score%` and `%date%` are replaced at execution time
--action_level int	Only run the command from `--action_command` for files with at least this score (default `40`)

13.5.2. Command Line Use

A typical use would be e.g. to copy a sample to a network share:

C:\Users\nextron>copy %filepath% \\\\server\\share1

To instruct THOR to run this command, you need

C:\nextron\thor>thor64.exe --action_command copy --action_args %filepath% --action_args \\server\share1

13.5.3. Use in a Config File

The ./config folder contains a template for a config file that uses the action commands.

Content of 'tmpl-action.yml':

# Action to perform if file has been detected with a score more than the defined 'action_level'
# You may use all environment variables that are available on the system, i.e. %COMPUTERNAME%.
# Further available meta vars are:
# %score% = Score
# %file% = Filename without extension
# %filename% = Basename
# %filepath% = Full path
# %ext% = Extension without dot
# %md5% = MD5 value
# %date% = Detection time stamp

action_level: 35
action_command: "copy"
action_args:
- "%filepath%"
- "\\\\VBOXSVR\\Downloads\\restore_files\\%COMPUTERNAME%_%md5%_%file%_%ext%_%date%"

13.6. THOR DB

This simple SQLite database is created by default in the "%ProgramData%\thor" (Linux, macOS: /var/lib/thor/) directory as "thor10.db". You can deactivate THOR DB and all its features by using the --nothordb flag.

It stores persistent information over several scan runs:

Scan State Information
- This information is used to resume scan runs where they were stopped
Delta Comparison
- This detection feature allows to compare the result of a former module check with the current results and indicate suspicious changes between scan runs

The THOR DB related command line options are:

Parameter	Description
--nothordb	Disables THOR DB completely. All related features will be disabled as well.
--dbfile [string]	Allows to define a location of the THOR database file. File names or path names are allowed. If a path is given, the database file `thor10.db` will be created in the directory. Environment variables are expanded.
--resume	Resumes a previous scan (if scan state information is still available and the exact same command line arguments are used)
--resumeonly	Only resume a scan if a scan state is available. Do not run a full scan if no scan state can be found.

13.6.1. Resume a Scan

THOR tries to resume a scan when you set the --resume parameter. Since THOR version 10.5 the resume state doesn't get tracked by default due to its significant performance implications. If you want to be able to resume a scan, you have to start scans with the --resume flag. If you start a scan and a previous resume state is present, then THOR is going to resume the interrupted scan.

It will only resume the previous scan if

You have started the scan with --resume
The argument list is exactly the same as in the first scan attempt
You haven't used the flag --nothordb
Scan state information is still available in THOR DB (could have been cleared by running THOR a second time without the --resume parameter)

You can always clear the resume state and discard an old state by running thor.exe once without using the --resume parameter.

13.6.2. Delta Comparison

The delta comparison feature allows comparing former scan results on a system with the current results, indicating changes in system configurations and system components.

Currently, the following scan modules feature the delta comparison check:

Autoruns
- THOR compares the output of the Autoruns module with the output of the last scan run. The Autoruns module does not only check "Autorun" locations but also elements like browser plugins, drivers, LSA providers, WMI objects and scheduled tasks.
Services
- The comparison detects new service entries and reports them.
Hosts
- New or changed entries in the "hosts" file could indicate system manipulations by attackers to block certain security functions or intercept connections.

13.7. Archive Scan

The Archive Scan feature supports the following archive types:

ZIP
RAR
TAR
TAR + GZIP (.tar.gz)
TAR + BZIP2 (.tar.bz2)
GZIP
7ZIP
CAB
