9. Configuration

9.1. Scan Templates

THOR accepts YAML-based configuration files, referred to as "templates". They map to THOR's command-line options and provide a flexible way to define scan settings.

This means that every parameter that can be set on the command line can also be provided in a configuration file. You can also combine multiple template files in a single scan run.

9.1.1. Default Template

THOR always applies the default file named thor.yml in the ./config subfolder. Additional config files can be applied with the -t command-line parameter. If the same option is set in both thor.yml and a custom template, the value from thor.yml always takes precedence.

9.1.2. Apply Custom Scan Templates

The following command applies a custom scan template named mythor.yml.

C:\nextron\thor>thor.exe -t config\mythor.yml

9.1.3. Example Templates

The default config file thor.yml in the ./config folder has the following content:

 1# This is the default config for THOR
 2# Terminate THOR if he runs longer than 72 hours
 3max_runtime: 72
 4# Minimum score to report is 40
 5min: 40
 6# Skip files bigger than 12000000 bytes
 7max_file_size: 12000000
 8# Skip files bigger than 30000000 bytes in intense mode (--fsonly, --intense)
 9max_file_size_intense: 30000000
10# Limit THOR's CPU usage to 95%
11cpulimit: 95
12# The minimum amount of free physical memory to proceed (in MB)
13minmem: 50
14# Truncate THOR's field values after 2048 characters
15truncate: 2048

Example content of a custom config file mythor.yml:

1resume: true
2cpulimit: 40
3intense: true
4max_file_size: 7500000
5syslog:
6   - foo.nextron
7   - bar.nextron:514:TCP

The default scan template is always applied first. Custom templates can then override settings from the default template. In the example above, the cpulimit and max_file_size parameters are overridden by the custom template.

As shown in the example file, template files must use the long form of the command-line parameters (for example syslog), not the short form (for example -s). You can look up the long forms in the command-line help with --help.

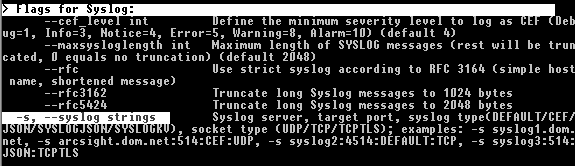

Lookup command line parameter long forms using --help

Lookup command line parameter long forms using --help

9.2. CPU Limit (--cpulimit) Explained

The --cpulimit argument helps prevent THOR from overloading your system's CPU. Here is how it works:

  • This argument takes a number (default: 95, minimum: 15).

  • The number represents the percentage of total CPU power that, if exceeded, will cause THOR to pause.

  • It considers the entire CPU, not just individual processor cores.

If your system's CPU is constantly under heavy load (above the --cpulimit value), THOR will pause its scanning. Once CPU usage drops below the limit, THOR will resume automatically.

For example, if --cpulimit is set to 40:

--cpulimit 40

Total CPU Usage

THOR Status

20 %

Running normally

80 % (other programs using CPU)

Paused (waiting)

30 %

Running normally

Important

  • If you check CPU usage using top, you might see THOR using more than 100%. This is normal due to how CPU usage is measured. See Irix Mode in top

  • This setting does not slow down THOR — it only ensures THOR doesn't interfere with other programs by pausing when CPU usage is high.

Setting --cpulimit to a low value is often used in systems which are idle for a long period of time, but sporadically do CPU heavy work. THOR was designed to keep the system's stability as the top priority, so in most cases you don't have to change this setting if you are concerned about the stability of your system you are trying to scan.

9.3. Maximum File Size

The default maximum file size for content checks (hash calculation and YARA scanning) is 30 MB. The maximum file size for the --intense scan mode is 200 MB.

You can adjust the values in ./config/thor.yml. This file does not get overwritten by an update or upgrade.

Special scan features like the EVTX or Memory Dump scan ignore these limits.

Features that obey the file size limit:

  • YARA Matching

  • Hash calculation

  • STIX IOC application

  • ArchiveScan

Features that ignore the file size limit:

  • LogScan

  • RegistryHive scanning

  • EVTX scanning

  • DeepDive on memory dumps (selected by .dmp and magic headers)

  • Filename IOCs

  • YARA meta rules (only check the first 100 bytes of a file and all meta data)

If the --intense flag is used, a different file size limit is applied.

The only exception is ArchiveScan (e.g. ZIP file analysis) that has no file size limit in intense scan.

9.3.1. Chunk Size in DeepDive

The chunk size in DeepDive module is set to the value defined as maximum file size. DeepDive uses overlapping chunks of this size for YARA rule scanning.

Example: If the maximum file size is set to a default of 12 MB, DeepDive use the following chunks in its scan to apply the YARA rule set:

Chunk 1: Offset 0 – 12
Chunk 2: Offset 6 – 18
Chunk 3: Offset 12 – 24
Chunk 4: Offset 18 – 30

9.4. Exclude Elements

9.4.1. Files and Directories

You may use the file directory-excludes.cfg to exclude directories and files(! The name of the config file is misleading) from the scan.

THOR will not scan the contents of these directories. This directory-excludes.cfg config is meant to avoid scanning sensitive files like databases or directories with a lot of content. If you want to suppress false positives that are generated in these directories, please see the following chapter and how to suppress them by using false_positive_filters.cfg.

The exclusion file contains regular expressions that are applied to each scanned element. Each element consists of the file path and file name (e.g. C:\IBM\temp_tools\custom.exe). If one of the defined expressions matches, the element is excluded. Exclusions can be defined for a full element name, at the beginning at the end or somewhere in the element name.

Note

If used in combination with flags like --virtual-map that change the original path on the filesystem, the exclusions are applied to the real path on the filesystem, not the original path.

For example, when using --virtual-map F:C and scanning a file located at F:\Windows\explorer.exe, THOR will check if F:\Windows\explorer.exe is excluded, not if C:\Windows\explorer.exe is excluded.

As the configured exclusions are treated as regular expressions, special characters must be masqueraded by backslash. This applies at least for: []\^$.\|?\*+()-

Element to exclude

Possible solution

C:\IBM\temp_tools\custom.exe

C:\\IBM\\temp_tools\\

Log folder of the tool "hpsm" regardless on the partition

\\HPSM\\log\\

Every file with the extension .nsf

\.nsf$

THOR custom signatures

\\THOR\\custom\-signatures\\

SQL database

/var/lib/mysql/

9.4.2. Eventlogs

Eventlog sources can be excluded as whole in "eventlog-excludes.cfg". The file holds one expression per line and applies them as regular expression on the name of the Eventlog. (e.g. Microsoft-Windows-Windows Defender/Operational)

Element to exclude

Possible solution

Windows PowerShell

Windows PowerShell

Microsoft-Windows-Windows Defender/Operational

Windows Defender

9.4.3. Registry

Registry paths/keys can be excluded in registry-excludes.cfg. The file holds one expression per line and applies them as regular expression on each registry key. (e.g. “Software\WOW6432Node“). Don't include the root of the key, e.g. HKLM.

Element to exclude

Exclude Definition

HKEY_LOCAL_MACHINE\Software\Wow6432Node\Symantec\Symantec Endpoint Protection\AV\Exclusions

Symantec Endpoint Protection\AV\Exclusions

9.4.4. False Positives

The false positive filters work like the directory/file excludes. A regular expression is applied to the full event, excluding the event header (e.g. Sep 14 12:07:07 some-hostname/192.168.0.20).

E.g. if you want to Exclude all messages that contain the string Trojan_Buzus_dev you just add this string to the false_positive_filters.cfg file. The file works with regular expressions so you could also define something like chinese_(charcode|keyboard).

9.4.5. Filter Verification

If you are unsure about the filters you just set, we recommend a test run on a certain directory that matches the criteria.

You can start a short test run on a certain directory with:

C:\nextron\thor>thor.exe -a FileScan --intense -p C:\\TestDir

9.4.6. Personal Information

THOR features an option named --suppresspi that allows to filter the output messages and replace all known locations and fields that can contain user names or user ids with the value ANONYMIZED_BY_THOR.

What it does is:

  • Replace all "USER" and "OWNER" field values of all modules with the anonymized string value

  • Replaced the subfolder names of C:\Users and C:\Documents and Settings with the anonymized string value

There is no guarantee that all user IDs will be removed by the filter, as they may appear in the most unexpected locations, but in most cases this approach is sufficient to comply with data protection requirements.
